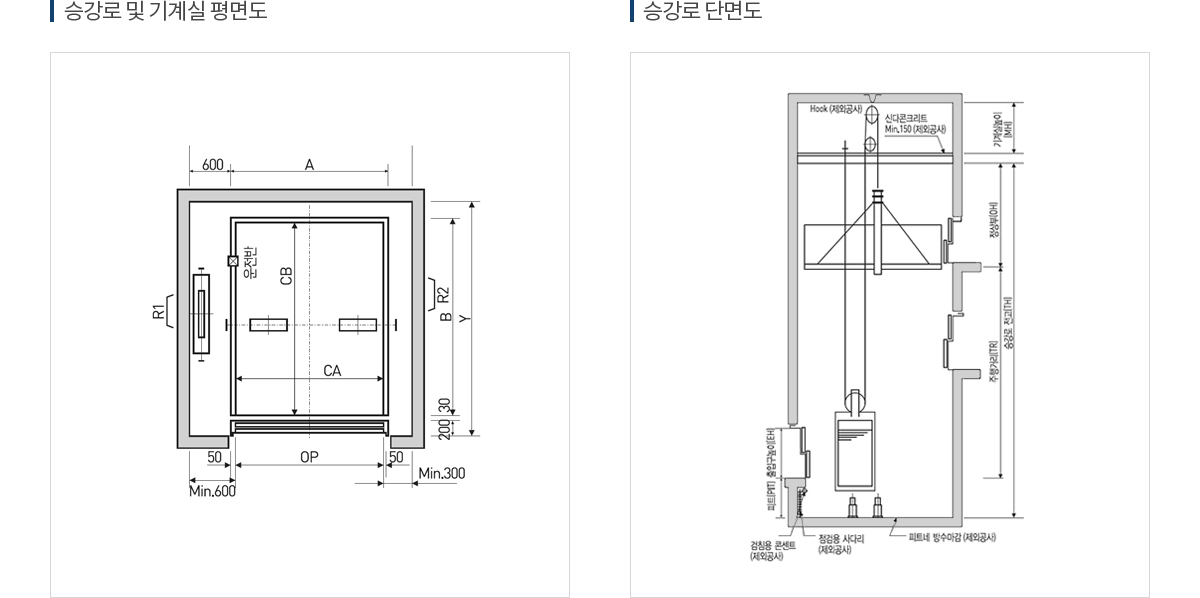

자동차용 엘리베이터
(유압간접식)
| TYPE | MAX LOAD (kg) | SPEED (m/min) | OPENING (op) |
CAR SIZE | HOISTWAY DIMENSION | MACHINE REACTION(kg) | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| EXTERNAR | INTERNAL | ||||||||||||
| A | B | CA | CB | X | Y | P(Pit) | OH(Over Head) | R1 | R2 | ||||
| GJ-CLR-2000 | 2000 | 20 | 2350 | 2350 | 5600 | 2350 | 5600 | 3400 | 6100 | 1400 | 3800 | 9600 | 14400 |
| GJ-CLR-2500 | 2500 | 20 | 2450 | 2450 | 5700 | 2450 | 5700 | 3600 | 6300 | 1400 | 3800 | 12200 | 18800 |
| GJ-CLR-3000 | 3000 | 20 | 2600 | 2600 | 5900 | 2600 | 5900 | 3800 | 6600 | 1600 | 4000 | 13600 | 20800 |

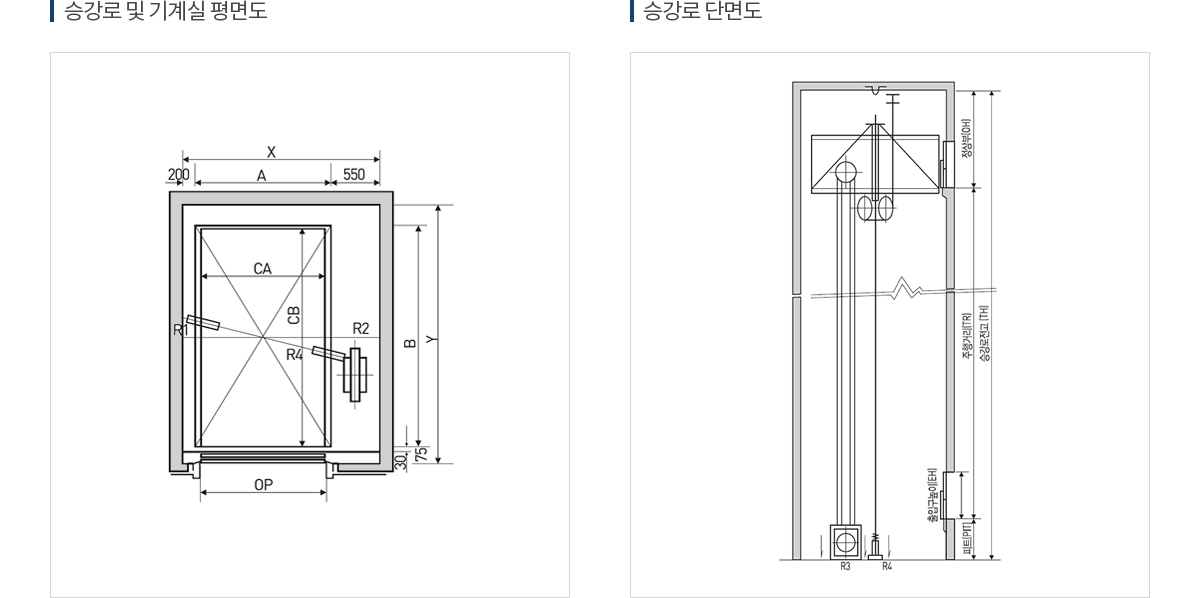

자동차용 엘리베이터
(로프식)
| TYPE | MAX LOAD (kg) | SPEED (m/min) | OPENING (op) |
CAR SIZE | HOISTWAY DIMENSION | MACHINE REACTION(kg) | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| EXTERNAR | INTERNAL | ||||||||||||||
| A | B | CA | CB | X | Y | P(Pit) | OH(Over Head) | R1 | R2 | R3 | R4 | ||||
| GJ-CLH-2000 | 2000 | 30 | 2350 | 2350 | 5500 | 2350 | 5500 | 3400 | 6100 | 1500 | 3800 | 4500 | 5000 | 9000 | 19500 |
| GJ-CLH-2500 | 2500 | 30 | 2450 | 2450 | 5700 | 2450 | 5700 | 3600 | 6300 | 1500 | 3800 | 5200 | 5000 | 9500 | 21500 |
| GJ-CLH-3000 | 3000 | 30 | 2600 | 2600 | 5900 | 2600 | 5900 | 3800 | 6600 | 1600 | 4000 | 6000 | 5000 | 10000 | 23000 |
